Visualización de los Resultados de la Ejecución del CATDUA V5

Esta página nos muestra como se visualiza el informe (report) de una ejecución del Check o del Clean.
Podemos acceder a los resultados de la ejecución del Check / Clean cuando:

Antes de realizar esta tarea, debería estar al corriente del uso del CATDUA V5. Para esto, referirse a:

•	Uso del CATDUA V5, dentro de una sesión de CATIA.
•	Uso del CATDUA V5, fuera de la Sesión.

Uso del CATDUA V5:

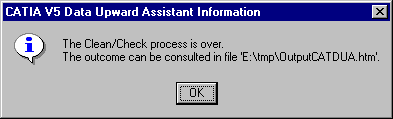

Al usar el CATIA Data Upward Assistant fuera de una sesión de CATIA, es decir, cuando usamos CATDUA V5, un mensaje aparece en el finalizar el proceso del Check/Clean.

Este mensaje le da la ruta de directorios del informe del chequeo / limpieza (ruta de directorio que usted ha definido más arriba).

Los resultados del chequeo / limpieza se almacenan en un archivo de tipo .htm (GlobalResults.htm). Para tener acceso a este archivo, puede utilizar un explorador de Windows. El resultado es el mismo que el CATUTIL' s.

Uso del CATDUA V5 mediante al Utilidad CATUTIL:

Example 1: In check mode on one or several CATIA Documents

If you have selected one or several CATIA Documents for the Check execution, the .htm file will give you the results for all the documents.

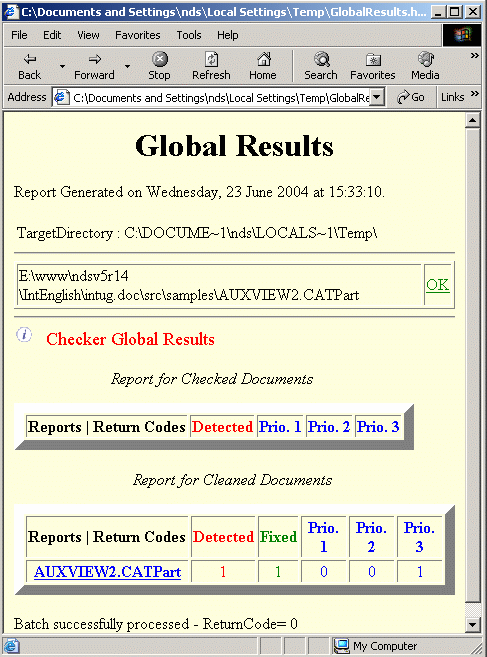

you obtain the following results files a global image: global report giving you an access to the official documentation if the "Location of the Technical Documentation" option is correctly set up in the Tools -> Options -> General -> Help tab.

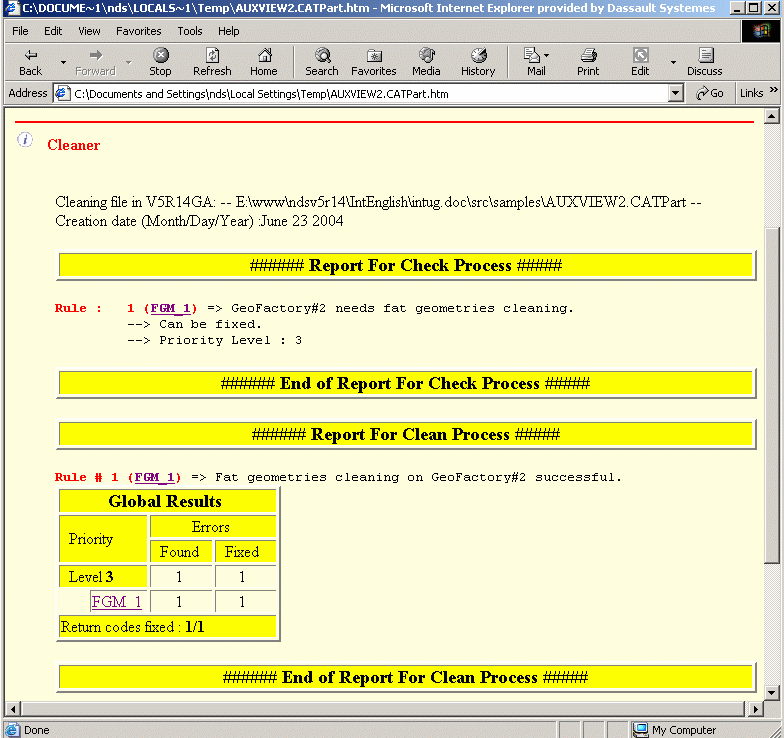

You can have access to an htm Report file (...filename.htm) per document. For this, click the hyperlinks in the Global Status OK / KO. This file is an htm version of the .txt file and it contains a hyperlink to the official documentation for each detected errors. You can click a rule, for instance FGM_1, and see the corresponding explanations about this rule in the documentation.

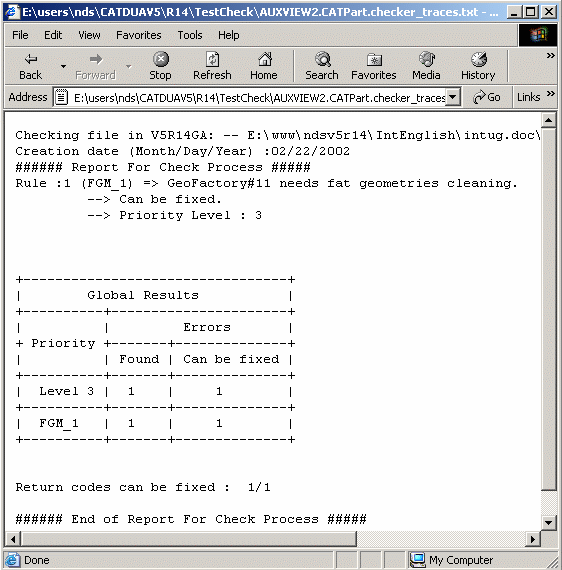

You can have access to the .txt Report file (....checker_traces.txt). For this, click the hyperlinks in the Report - Return Codes column of the Report for Checked Documents table. This document delivers the check results and informs you about the status of the return codes, if they can be repaired or not.

You can have access to:

Priority Level: corruption level of the file.
Return codes can be corrected: the number of return codes that can be solved in the clean mode.
synthesis report providing the list of errors for each priority.

Example 2: In Clean mode

The .htm file looks like the one of the check mode. This is a .htm document, with a table entitled Report for Cleaned Documents containing hyperlinks. You can see OK in the Save column of the Report for Cleaned Documents table, it means that the cleaned documents have been automatically saved.
If you click on a link, you can find the clean results in the file .cleaner_traces.txt, with the number of clean return codes out of the total number of return codes:

Example 3: In Check / Clean mode on one or several CATIA Documents

The selection of one or several CATIA Documents in both the Check and in the Clean sections is possible and you will obtain the same .htm file combining both Check and Clean results.

Using CATDUA V5 or CATDUA V5 via the CATUTIL, you can have several documents in the Report / Return Codes field.
The cleaned documents are automatically saved in the path directory you have previously specified. In this case, the .htm file reports that the cleaned documents have been saved in the Save field of the Report for Cleaned Documents table. The .txt Report file cleaner_traces.txt is available by activating the hyperlink in the .htm report or by navigating in a Windows Explorer (in the same folder as the .htm file). This file delivers the check results and the clean results. It informs you about the status of the return codes, the number of cleaned return codes out of the total number of return codes.

  In a CATIA session, the check / clean results are stored in a .htm file. This .htm file is associated to a .txt file which gives more details (the directory is given in the CATIA V5 Data Upward Assistant Information message or in the CATIA V5 Data Upward Assistant Information field of the CATDUA V5 dialog box).
  After running the Check or Clean batch, you obtain exactly the same result reports and you can find details in the .txt file associated to the .htm file.
Note that you can automatically open the report window and select the .htm output file.   In the table called Global Results: this is the synthesis of both files (.htm and .txt), the synthesis of the detected errors that have been checked and cleaned in the CATIA Document. There is the same table in the .txt file.

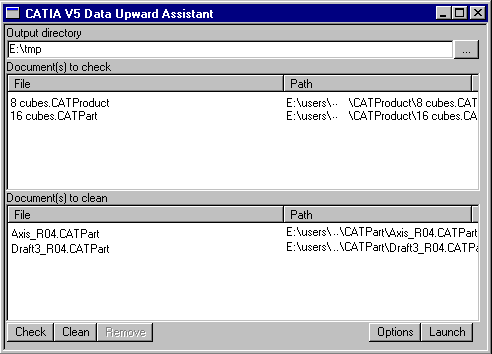

Using CATDUA V5 via File / Desk in an interactive CATIA session:

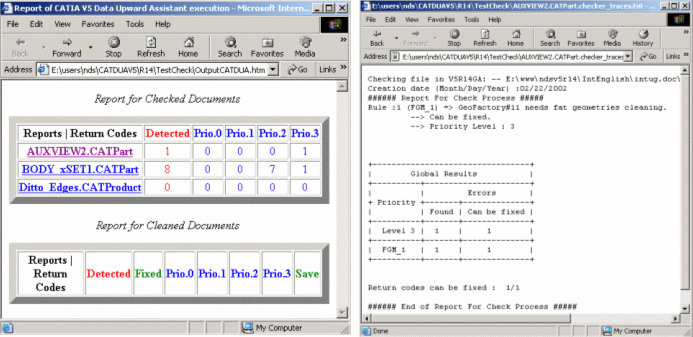

The Reports are generated in a Global Report file (OutputCATDUA.htm) and in a .txt file (checker_traces.txt or cleaner_traces.txt):

You can have access to:

•	Priority Level: corruption level of the file,
•	Return codes can be corrected: the number of return codes that can be solved in the clean mode.
•	a synthesis report providing the list of errors for each priority

The output directory is not automatically emptied by the Data Upward Assistant before launching a new check or clean execution. If you do not wish to visualize your former results in the .html file, you need to clear the directory. Moreover, the documents (CATParts, CATProducts, CATDrawings, CATAnalysis, CATProcess, CATMaterial...) in the output directory are not write-protected. The delivered information is:

•	name of the CATIA documents you have checked,
•	number of the detected return codes,
•	number of the fixed return codes,
•	number of the priority1 / priority2 / priority3 return codes,
•	hyperlinks pointing at a .txt file which give the details of the results for each CATPart (in the Reports - Return codes column),
•	information about the save operation.
•	hyperlink pointing the official documentation.

Este fichero ha sido traducido, parcialmente del Help de CATIA V5, Release 16.
